Application:
1.Auto belt loading system with vacuum robot
Fully automatic loading system with hopper and bowl feeder optional
2.Auto flame treatment with electric ignition and air exhausting system
3.Robot catch and place onto jigs
4.Sandex indexer from Japan
5.auto printing with servo driven pad printer
6.Pneumatic support under printing jigs
7.Steel plate in/out driven by servo motor with linear rails
8.Pad up/down only, driven by servo motor with bolts screw
9.Pad cleaning driven by cylinder with cycle adjustable
10.Hot air blower after printing
11.Steinel blower from Germany
12.Automatic unloading
13.PLC control, touch screen display
14.Well build machine closure with CE
Tech-data:
90mm ink cup
100x215mm plate
Auto pad cleaning
Printing speed: 2000-2500pcs/h

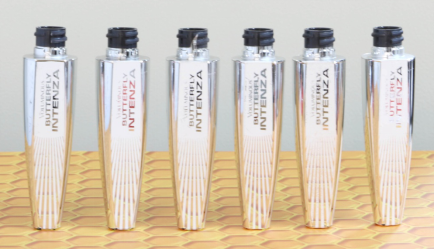

Samples:
