G323-8 3-8 colors screen printer

所屬類別： > 產品中心 > 絲印機 > 圓盤機

型號：G323,324,326

在線詢價

Application:

The G323-8 is designed for 3+colors decoration of all shapes of glass bottles, cups, mugs at high production speeds. Mostly used for wine bottles printing. It can print any shape of containers all around in 1 print. It is suitable for glass containers printing with UV ink or thermoplastic ink. All servo driven and fast speed make the G323-8 ideal for off-line or in-line 24/7 production.

General Description:

1．Automatic loading system with multi axis servo robot.

2．Indexing table system with best accuracy.

3．Automatic printing system with all servo driven: printing head, mesh frame, rotation, container up/down all driven by servo motors.

4．All jigs with individual servo motor driven for rotation.

5．Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen.

6．All Ethercat servo motors with industrial PLC control & touch screen operation system, internet cable connection available for future maintenance and program upgrading.

7．Automatic unloading with servo robot.

8．Safety operation with CE .

Options:

1.Camera vision system to check the mold line for cylindrical bottles, to avoid printing on the line.

2.Flame Plasma pre-treatment system for best adhesion on glass for UV ink printing.

3.Electrode UV system from Europe for G323, 324, 325 3-5 colors machine. G326-328 can only be equipped with heating system for thermo plastic ink due to the packing size.

4.Omron safety control system.

5.New shape program upgrading through internet.

6.Second color can be replaced with hot stamping head if the first color is UV print.

7.Simplified model: G323-328R for cylindrical bottles only.

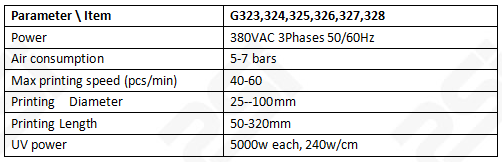

Tech-data:

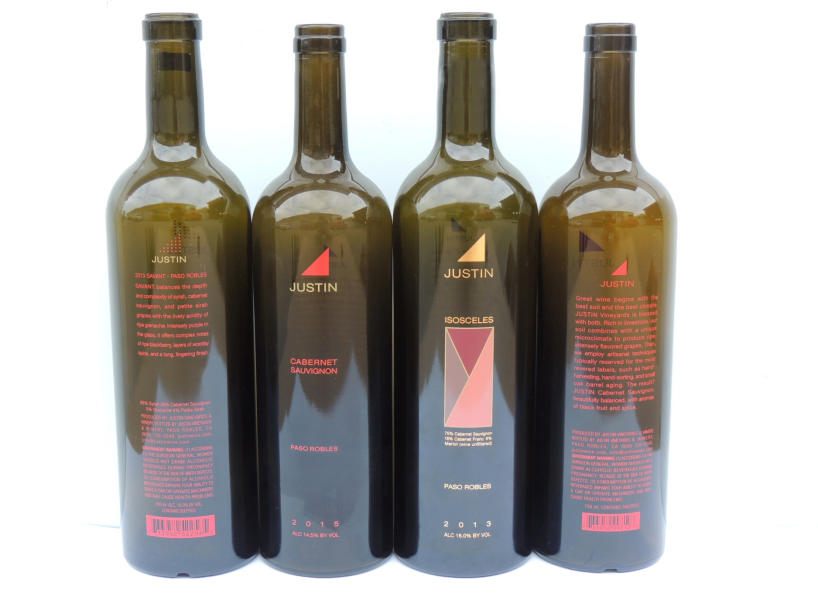

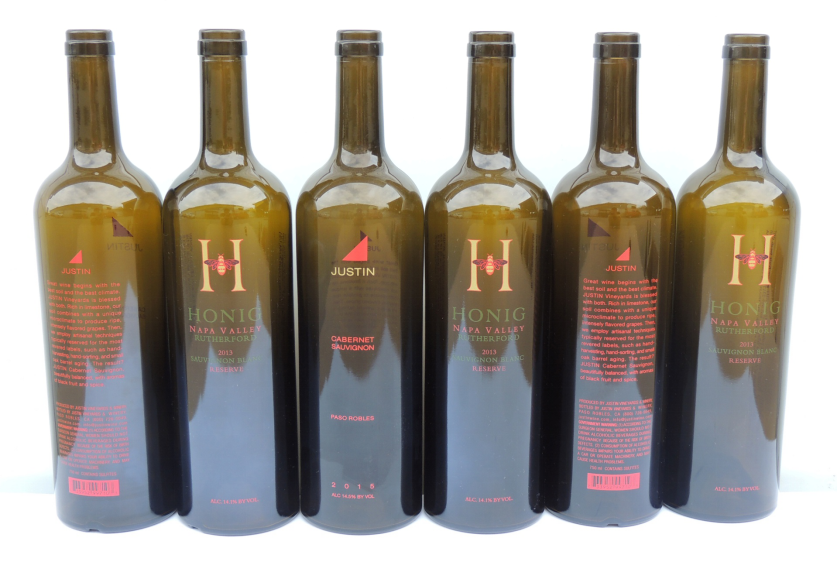

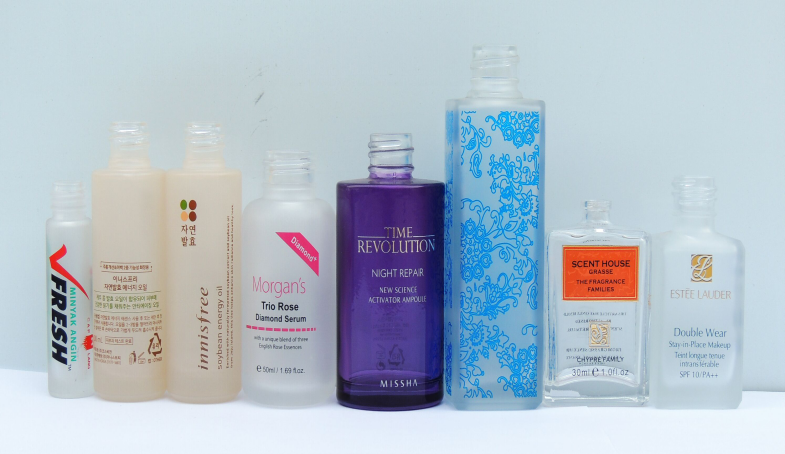

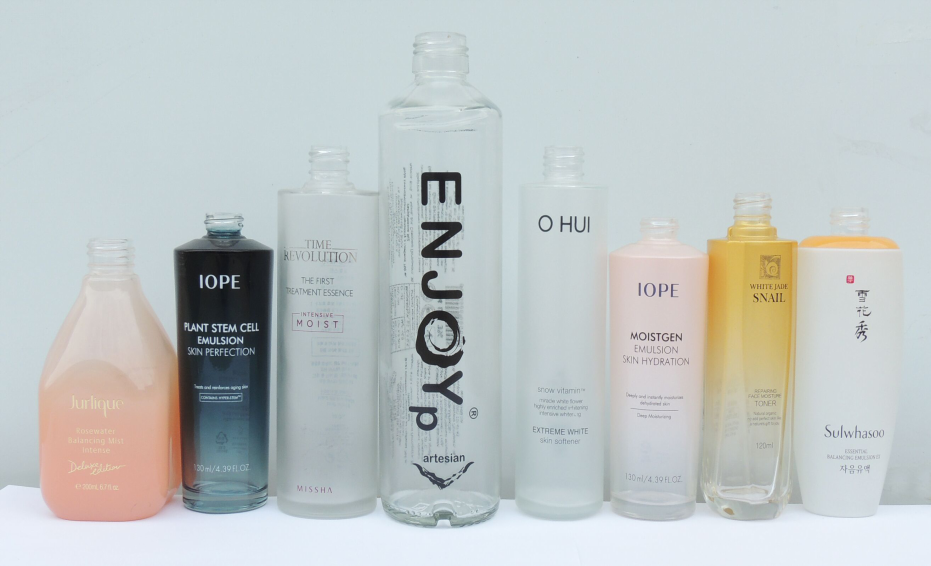

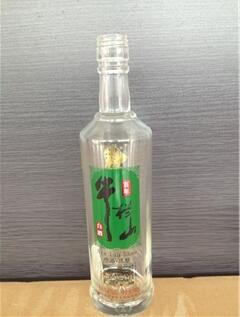

Samples:
